Standard Patterns

Tried and tested. Ready to install.

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

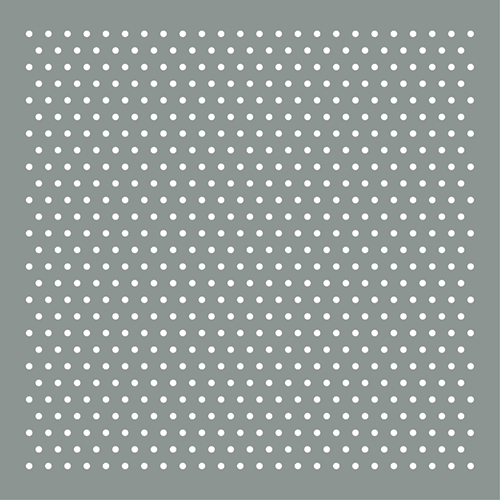

WAL-101

Shape:

Round

Hole Size:

3.2mm

Open Area:

10%

Arrangement:

60°

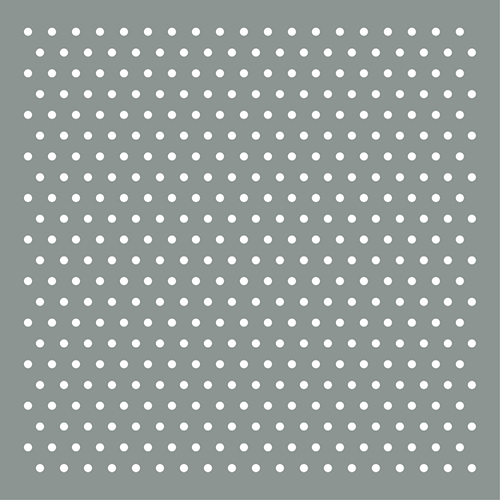

WAL-102

Shape:

Round

Hole Size:

4mm

Open Area:

10%

Arrangement:

60°

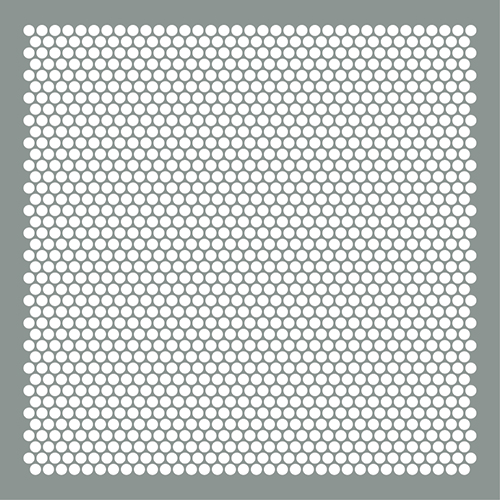

WAL-103

Shape:

Round

Hole Size:

5.5mm

Open Area:

65%

Arrangement:

60°

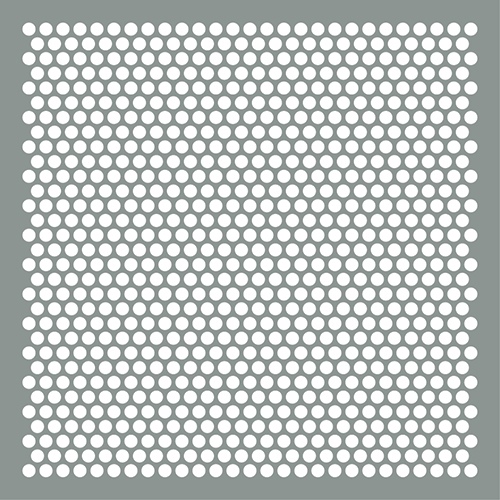

WAL-104

Shape:

Round

Hole Size:

6.5mm

Open Area:

53%

Arrangement:

60°

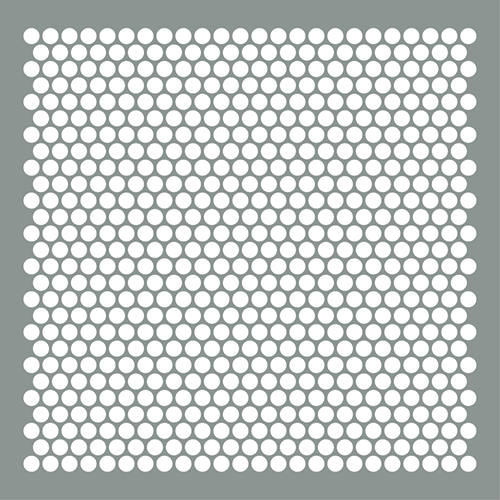

WAL-105

Shape:

Round

Hole Size:

8mm

Open Area:

64%

Arrangement:

60°

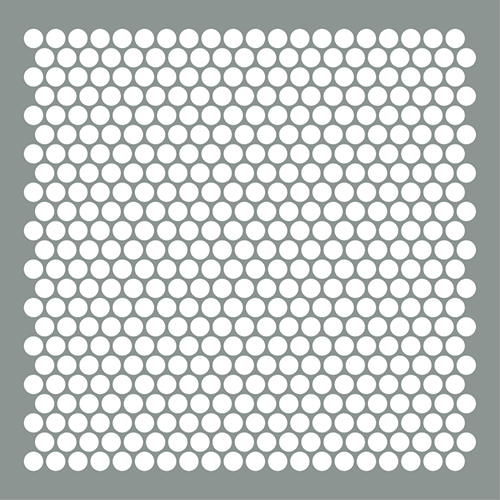

WAL-106

Shape:

Round

Hole Size:

9.6mm

Open Area:

68%

Arrangement:

60°

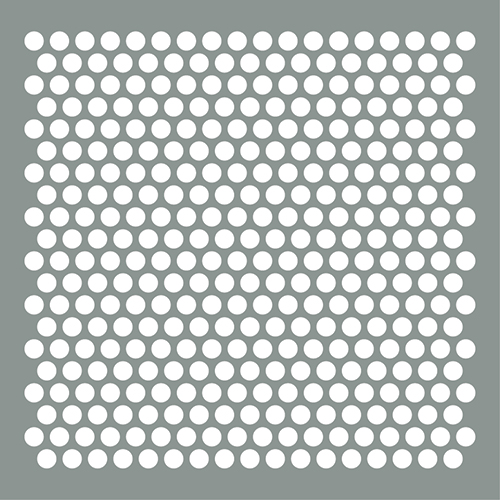

WAL-107

Shape:

Round

Hole Size:

9.6mm

Open Area:

52%

Arrangement:

60°

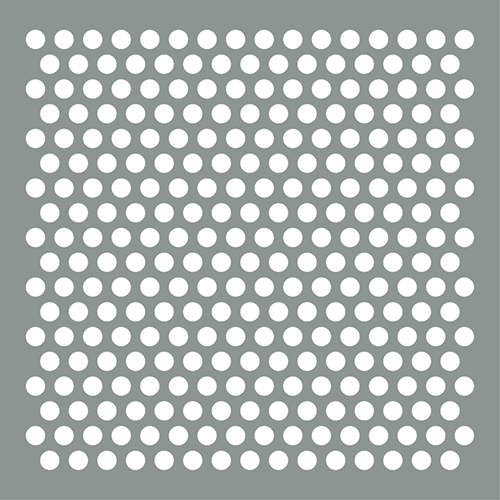

WAL-108

Shape:

Round

Hole Size:

9.6mm

Open Area:

41%

Arrangement:

60°

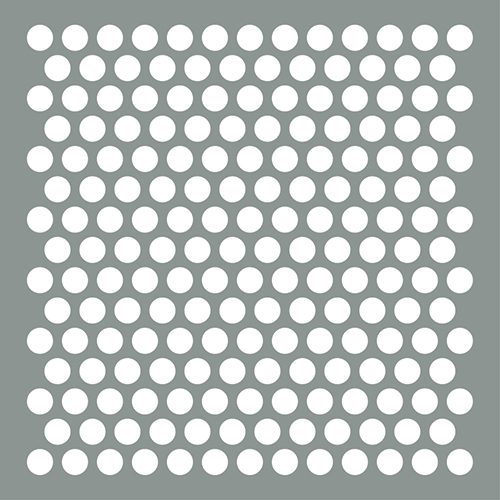

WAL-109

Shape:

Round

Hole Size:

13mm

Open Area:

50%

Arrangement:

60°

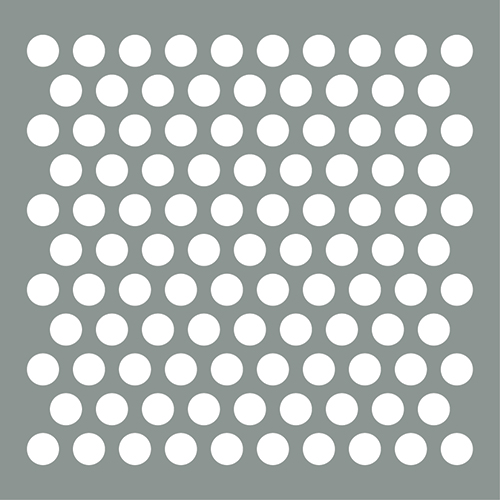

WAL-110

Shape:

Round

Hole Size:

16mm

Open Area:

44%

Arrangement:

60°

WAL-111

Shape:

Round

Hole Size:

20mm

Open Area:

52%

Arrangement:

60°

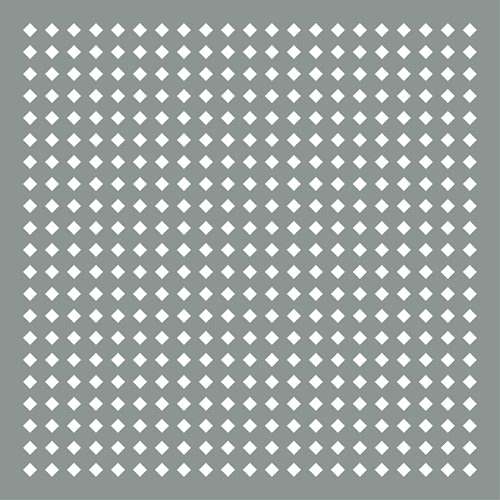

WAL-112

Shape:

Square

Hole Size:

7mm

Open Area:

30%

Arrangement:

90°

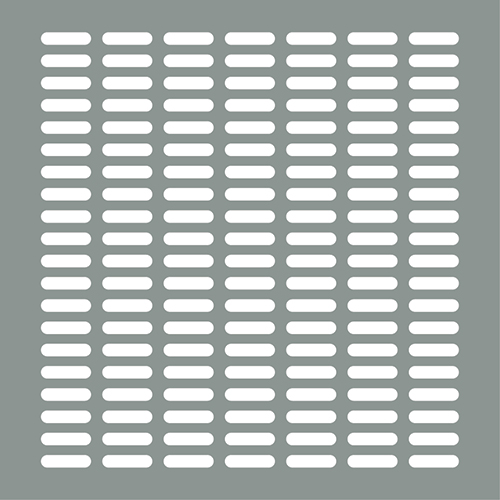

WAL-113

Shape:

Slot

Hole Size:

6.5 x 25mm

Open Area:

AUR

Arrangement:

90°

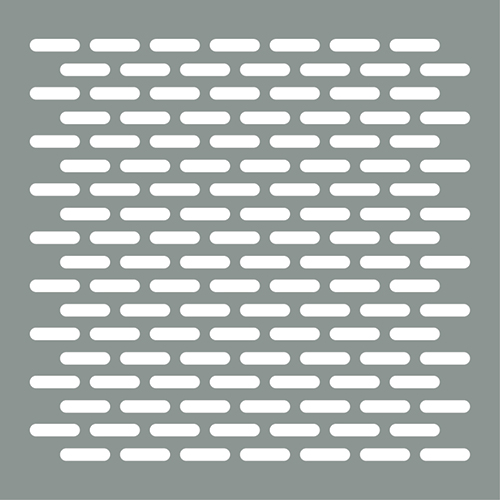

WAL-114

Shape:

Slot

Hole Size:

6.5 x 25mm

Open Area:

AUR

Arrangement:

45°
